Asphalt Rally

KSPORT ASPHALT RALLY

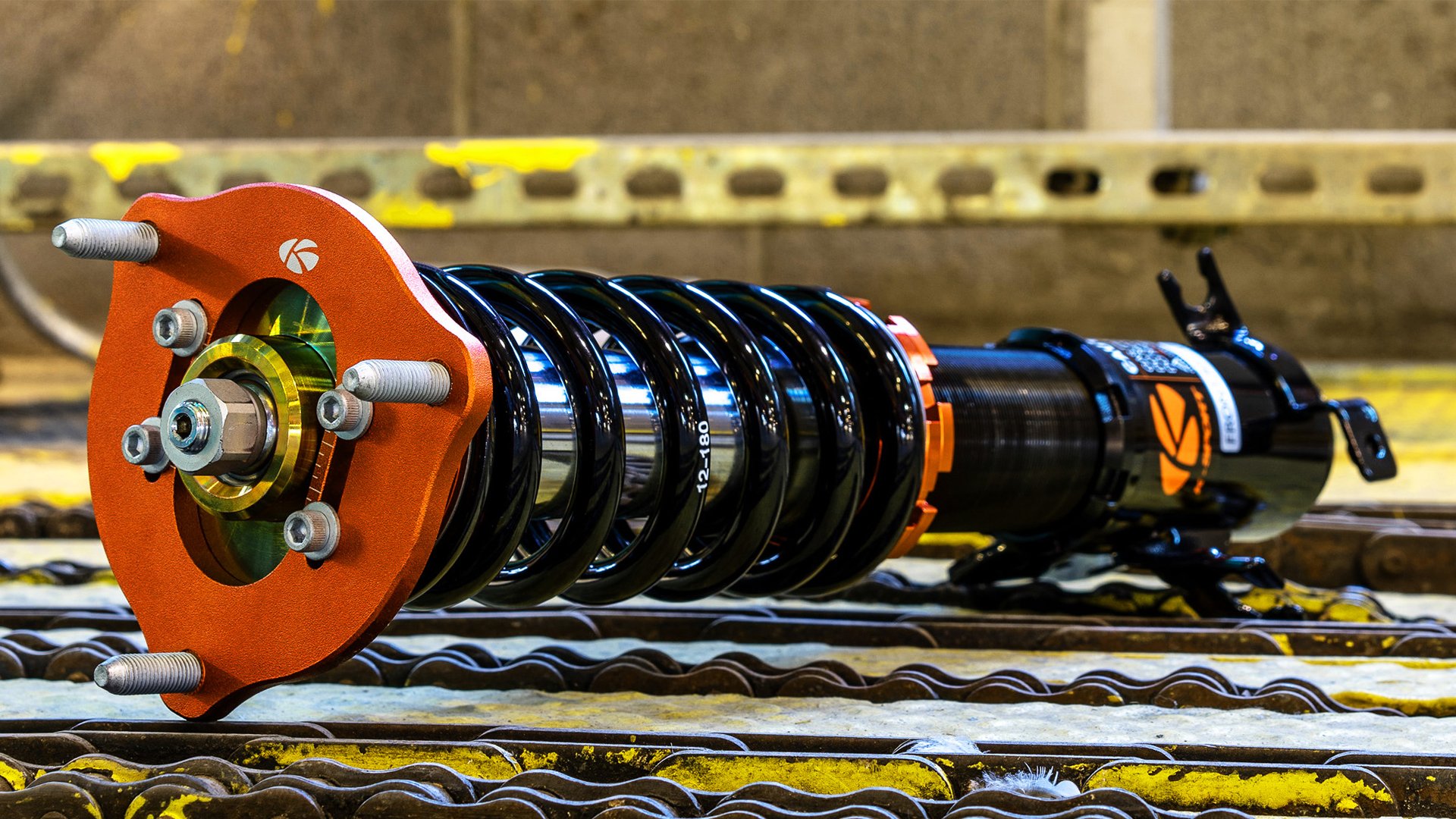

Coilovers designed for Asphalt Rally Racing

ASPHALT RALLY KEY FEATURES

The Ksport Asphalt Rally Coilovers are designed specifically for Asphalt Rally Racing and competition. This system features extended stroke, heavy-duty internals, and simultaneous compression and rebound adjustment. Large diameter pistons inside the shock allow for added oil capacity for increased cooling efficiency and carefully selected spring rates and shock damping settings for each application help to stabilize the vehicle and easily absorb bumps caused by uneven roads.

damping-knob

36 WAY ADJUSTABLE DAMPING

All Ksport coilovers offer 36 levels of damping which allow you the ability to perfectly dial in your coilover kit. Set damping to full soft for a nice comfortable cruising setting for normal driving.

steel-lower-mount

HEAVY DUTY STEEL LOWER MOUNT

Strengthened steel lower mounts are standard on vehicles using MacPherson type suspension. Vehicles with wishbone/multi-link type suspension have standard aluminum lower mounts as seen in our other coilover kits.

camber-adjustment

CAMBER ADJUSTMENT

For enthusiasts seeking the ultimate in adjustability, Ksport’s advanced upper pillowball mount is available on many applications with MacPherson type suspension, giving the option for separate camber and caster adjustments. This allows you to easily dial in your camber for things such as vehicle alignment while also eliminating the need for a separate camber kit.

inverted-steel-shock-absorber

INVERTED STEEL SHOCK ABSORBER

Inverted shocks are standard for some applications that have MacPherson type suspension (non-wishbone). Inverted shocks move the gas/oil chamber farther away from the knuckle and braking kit reducing heat transfer. This design also reduces unsprung weight which helps improve handling and responsiveness.

ASPHALT-RALLY-SHOCK

LARGE 55MM SHOCK BODIES

55mm Shock Bodies are used on kits that have inverted shocks. This allows for added oil capacity for increased cooling efficiency. They also perform better under stress situations which make them especially well-suited for track racing.

shock-shaft

ADJUSTABLE LOWER MOUNT

Most of our coilovers feature the ability to adjust your ride height without affecting the shock and spring travel. This way you can set your desired ride height without having to worry about bottoming out the shock.

shock-tube-dr

MONOTUBE HIGH PRESSURE DESIGN

Our adjustable coilovers use a Monotube design, with
oil and gas separated within the cylinder. When compared to twin tube construction, the Monotube design dissipates heat faster and more evenly and allows for finer damping adjustments. Aeration and cavitation issues are a lot less common in a Monotube design, resulting in a more consistent ride quality.

asphalt-kit

AEROSPACE QUALITY ALUMINUM

Most pieces in the system including mounts, collars and spring perches are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. Steel shock bodies are electroplated with zinc to resist rust and protect from the elements and kits include an anti-rust paste packet that can be applied to key areas of the coilover for added protection.

12 MONTH LIMITED WARRANTY

Asphalt Rally Coilovers come standard with a 12 month warranty which covers manufacturer defects.
